Actuator

Universal coding actuator

DF-K2-GS

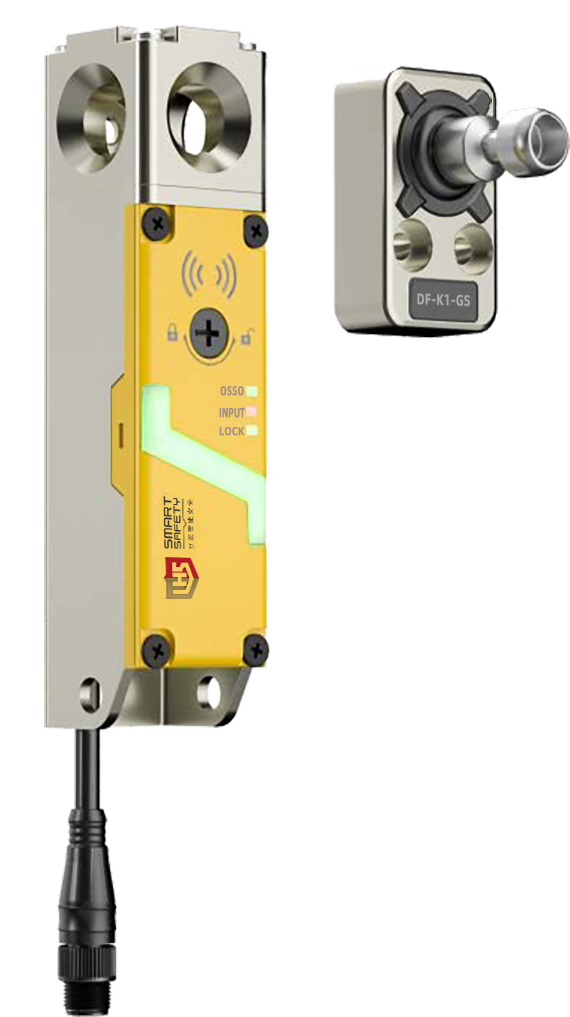

Code-only actuator

DF-K1-GS

Mounting frame

Mounting bracket for rotating shaft

(Applicable to hinged doors and hinged doors that open to the left)

D3SL-E-ZJ-JL-L

Mounting frame for rotating shaft

(Applicable to hinged doors and hinged doors that open to the right)

D3SL-E-ZJ-JL-R

Sliding mounting frame

(Suitable for push-pull doors that open to the left)

D3SL-E-ZJ-TL-L

Sliding mounting frame

(Suitable for push-pull doors that open to the right)

D3SL-E-ZJ-TL-R

Inner mounting bracket kit

D3SL-E-ZJ-NC

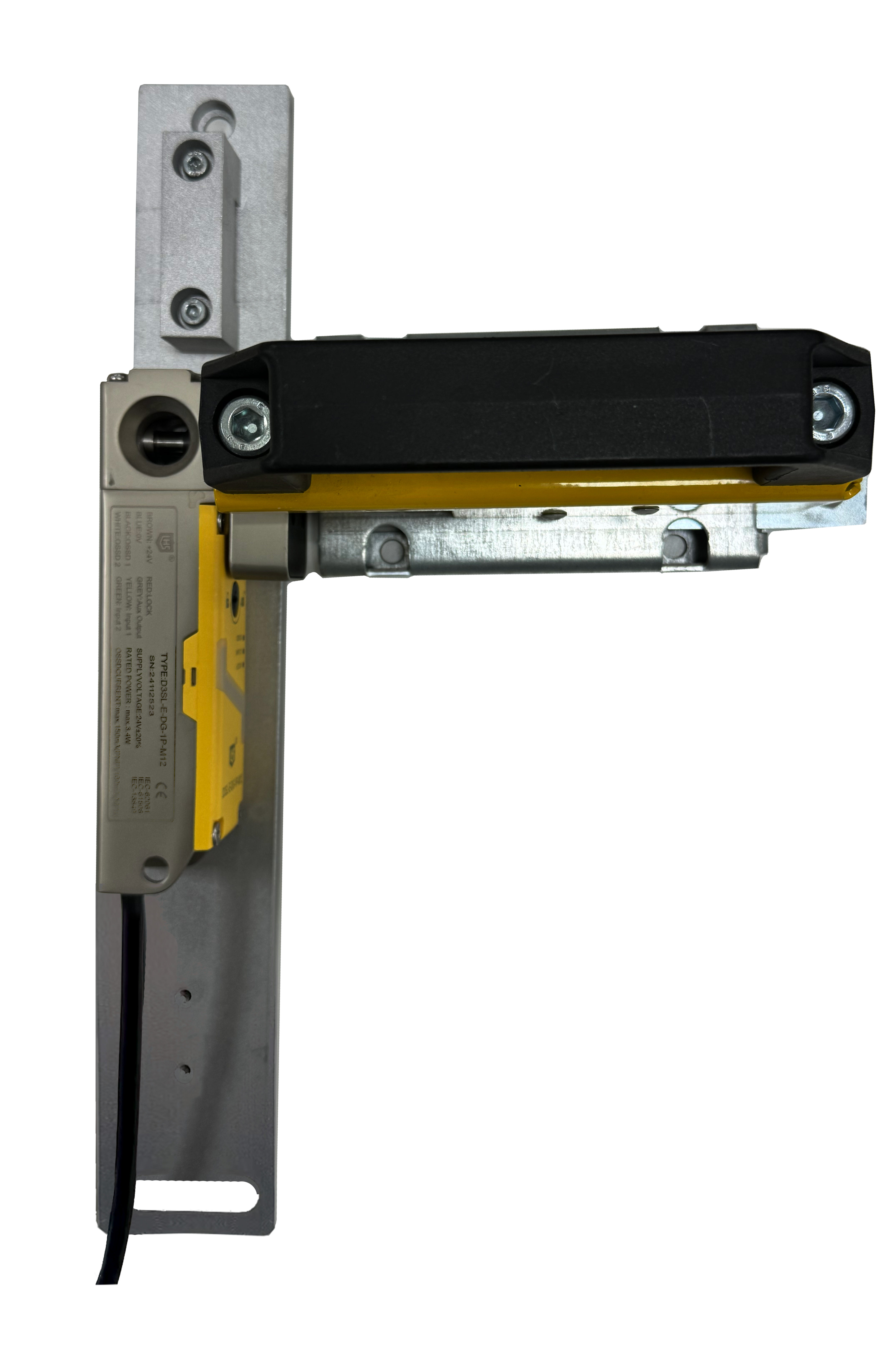

door handle

Actuator bracket

Door handle actuator frame for right opening

D3SL-E--ZJ-DH-R

Door handle actuator bracket for left opening

D3SL-E-ZJ-DH-L

M12 connecting line

Standard cable (8 pins and 8 cores)

D3SL-E-XL-P88C5

D3SL-E-XL-P88C10

High functional cable (12 pins and 12 cores)

D3SL-E-XL-P1212C5

D3SL-E-XL-P1212C10

Note: The standard length of M12 connecting cable is 3m. If it needs 5m or 10m, please select the appropriate model according to the table.

kind

normalized form

High function

normalized form

High function

cable specification

Terminal shape

Loose wire

M12 connector

Loose wire

M12 connector

Core number

8

12

8

12

length

3m/5m/10m

0.3m

5m/10m

0.3m

Output type

PNP/NPN

PNP

PNP/NPN

PNP

Response time (ms)※1※2

Locking action

Lock → unlock

220ms

320 ms

Unlock → Lock

220ms※3

locking

Tensile strength (Fzh)

2,000N more than

Tolerance of insertion position deviation

±2mm

Mechanical durability

More than 1 million times (door operation speed is 1 m/s)

Allowable operating frequency※ 4

1HZ

Allowable door radius

250mm and above

Manual release ※5

Front and back

Cascade connection

Up to 25 sets

Control output (OSS D output)

Output type

Transistor output ×2

Maximum load current

PNP：150mA and below, NPN：100mA and below.

Residual voltage (ON)

Maximum 2.5V (when the cable is 5m)

OFF voltage

Maximum 2.0V (when the cable is 5m)

leakage current

Up to 0.5mA

Maximum load capacity

2.2μF

Load connection resistance

highest2.5Ω

Output number

1

2

1

Maximum load current

50mA

Residual voltage (ON)

Maximum 2.5V (when the cable is 5m)

External input (short circuit current)

Safety input

About 1.5mA×2

Reset /EDM input

—

appointment10mA×1

—

Lock control input

appointment2.5mA×1

appointment2.5mA×2

appointment2.5mA×1

OSS D action switching input

—

Power Supply

Power supply voltage

DC24V±20%Include ripple(P-P)10% Class2

consumed power

3.4W※8

protective circuit

Reverse connection protection of power supply, short circuit protection of outputs, surge protection of outputs and reverse connection protection of outputs.

Environmental tolerance

Enclosure protection level

IP65/68

Operating ambient temperature

-20℃ to +55℃ (no freezing)

Storage ambient temperature

-25℃ to +70℃ (no freezing) ※9

Using ambient humidity

5% to 95%RH

Storage environment humidity

5% to 95% RH

Vibration resistance

10 to 55Hz, double amplitude 2.0 mm, 5 minutes in each direction of X, Y and Z (IEC 60947-5-3).

resistance to impact

30GX, Y and Z directions 6 times (IEC 60947-5-3)

Applicable specifications (safety)

EN61508、IEC 61508(SIL2/SIL3)EN 62061、IEC62061(SIL CL2/SIL CL3)

ENISO 13849-1:2015(PLd、Category 2/PLe、Category 4)

ENISO 14119(Type4)IEC 60947-5-3、EN 60947-5-3 UL61010-1、

CAN/CSA-C22.2 No.61010-1

texture of wood

Sensor host

shell

SUS304、Zinc alloy、PBT、PA66、NBR

Locking part

Aluminium alloy (hardening)、SUS304

electric cable

PVC

key

shell

Zinc alloy、PBT、NBR

Locking part

SUS304、Zinc alloy

functional mode

Indicator light

State description

Lock the door

Normal output

??

Working status indicator: green light is on.

OSSD output indicator: green light is on.

INPUT input indicator: yellow light is on.

LOCK lock indicator: green light is on.

1. The detected key signal is normal.

2. The door closes when the key is detected to be in place.

3. The input signal is normal

4. Lock and output normally

Unlock the door

No output

Working status indicator: red light is on.

OSSD output indicator: red light is on.

INPUT input indicator: yellow light is on.

LOCK lock indicator: off

1. No key signal is detected.

2. The key was not detected in place and the door was opened.

3. The input signal is normal

4. No lock and no output

The door is unlocked.

Or lock the door.

No output

Working status indicator: red light is on.

OSSD output indicator: red light is on.

INPUT input indicator: yellow light is on.

LOCK lock indicator: the green light flashes at 1HZ.

1. No key signal is detected.

2. Detect that the key is inserted in place and the door closes.

3. The input signal is normal

4. The door is not locked: the key signal was not detected when the door was just closed.

Locking the door: No key signal was detected halfway after locking.

There is no output in either case.

Lock the door

No output

Working status indicator: red light is on.

OSSD output indicator: red light is on.

INPUT input indicator: off

LOCK lock indicator: green light is on.

1. No input signal

2. Lock no output

Lock the door

No output

Working status indicator: red light is on.

OSSD output indicator: red light is on.

INPUT input indicator: yellow light flashes at 1HZ.

LOCK lock indicator: green light is on.

1. Wait for Rest reset signal

2. Lock no output

OSSD mistake

Working status indicator: red light is on.

OSSD output indicator: red light flashes 2HZ.

INPUT input indicator: yellow light is on.

LOCK lock indicator: green light is on.

1.OSSD has a short circuit, or the wiring is incorrect.

2. Inductive load causes voltage surge of OSSD.

3.OSSD is affected by electrical interference.

4.OSSD has failed.

5. Lock no output

EDM mistake

Working status indicator: red light is on.

OSSD output indicator: red light flashes at 1HZ.

INPUT input indicator: yellow light is on.

LOCK lock indicator: green light is on.

1.EDM input is not wired correctly.

2. Lock no output

Locking exception

Working status indicator: red light is on.

OSSD output indicator: red light is on.

INPUT input indicator: yellow light is on.

LOCK lock indicator: the green light flashes at 2HZ.

1. Electromagnet error or optocoupler error.

2. Lock uncertainty, output

hardware fault

Working status indicator: the red light flashes at 1HZ.

OSSD output indicator: red light is on.

INPUT input indicator: yellow light is on.

LOCK lock indicator: green light is on.

1. Internal fault detection error

2. Hardware failure

3. Lock no output
